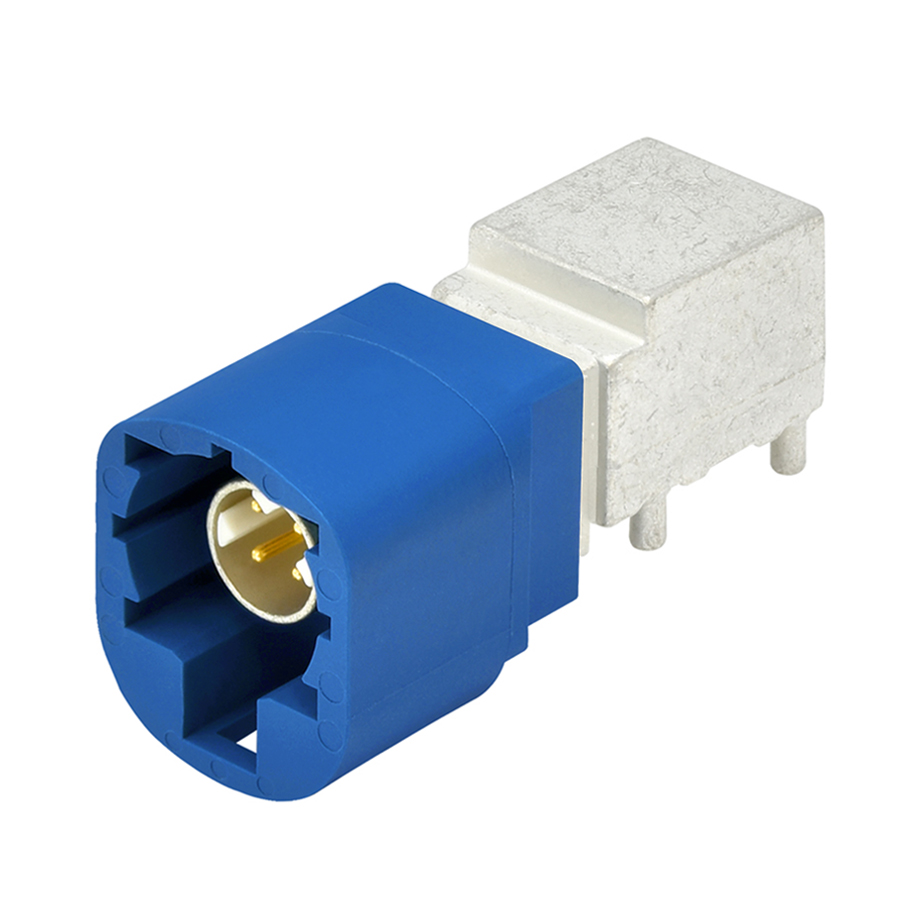

5430104002X

1. INSULATOR: PA9T OR PA6T
2. CONTACTS: BRASS
PLATING: CONTACT AREA: 6u” SELECTIVE AU
SOLDER TAILS AREA: 80~160u” MATTE SN (LEAD FREE)
3. OUTER CONTACTS: ZINC ALLOY
PLATING: 120~240u” SN (MATTE) OVER 120~240u” NI OVER 600~800u” CU

1. IMPEDANCE, DIFFERENTIAL MODE: 100 Ω DIFFERENTIAL SIGNALLING,
FOR ONE PAIR OR QUAD CABLE SHIELDED
2. FREQUENCY: DC to 2.0 GHz
3. RETURN LOSS: ≥ 20 dB to 1.0 GHz
≥ 17 dB to 2.0 GHz
4. INSERTION LOSS: ≤ 0.1 dB @ 1.0 GHz
5. INSULATION RESISTANCE: ≥ 1000 MΩ
6. SIGNAL CONTACT RESISTANCE: ≤ 10 mΩ

1. MATING CYCLES: ≥ 25 MATING CYCLES:
2. ENGAGEMENT FORCE: ≤ 30N
3. DISENGAGEMENT FORCE: ≥ 5N
4. RETENTION FORCE LATCH: ≥ 110 N
5. CODING EFFICIENCY: ≥ 80N

1.TEMPERATURE RANGE: -40°C TO +105°C

PACKING :
1. TAPE REEL

Key Down(Reverse):
◼ A Code, Black
◻ B Code, White
◼ C Code, Blue
◼ D Code, Bordeaux
◼ Z Code, Water Blue
