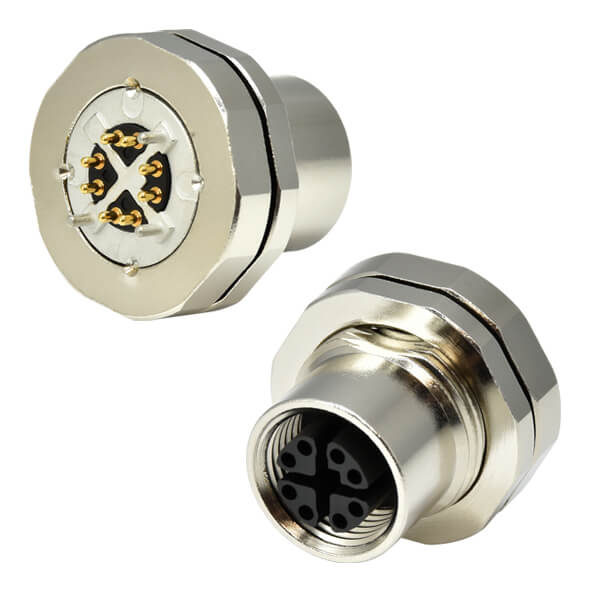

54902080010
54902080010
Specification
MATERIAL AND FINISH
1.INSULATOR:THERMOSETTING POLYMER,BLACK
2.CONTACT:COPPER ALLOY
PLATING:UNDERPLATE:50u”MIN.NI
CONTACT AREA:30u”AU
3.SHELL:COPPER ALLOY,50u”MIN.NI
4.O-RING:SILICON RUBBER
ELECTRICAL CHARACTERISTIC
1.OPERATION VOLTAGGE:48V AC(RMS)
2.CURRENT RATING:0.5 A MAX.
3.CONTACT RESISTANCE:5 mΩ MAX.
4.INSULATION RESISTANCE:100 MΩ MIN @500 VDC
5.DIELECTRIC WITHSTANDING VOLTAGE:500 VAC/MINUTE
ENVIRONMENT
1.TEMPERATURE RANGE:-25°C TO +85°C
PACKING
1.TRAY
