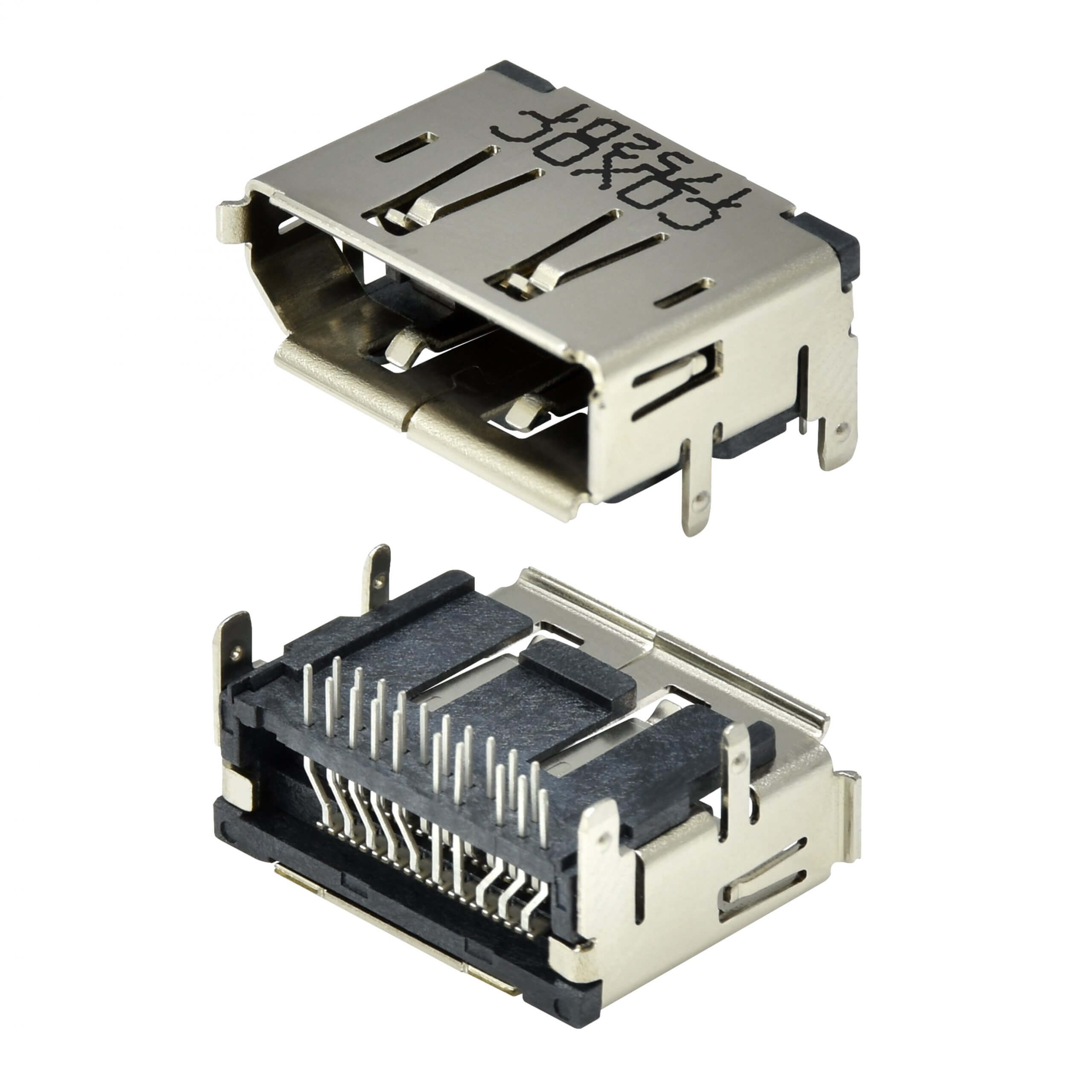

50902010010
50902010010
Specification
MATERIAL AND FINISH
1.INSULATOR:LCP,RATED UL94V-0,BLACK
2.CONTACTS:COPPER ALLOY
PLATING:UNDEERPLATE:50u”~100u”NI
CONTACT AREA:1u”~30u”AU
SOLDER TAILS AREA:100u”~200u”SN(MATTE)
3.SHELL:COPPER ALLOY OR STEEL,NI PLATED
ELECTRICAL CHARACTERISTIC
1.OPERATION VOLATGE:40V
2.CURRENTRATING:0.5 A MIN.
3.CONTACT RESISTANCE:30mΩ MAX.
4.INSULATION RESISTANCE:100 MΩ MIN.
5.DIELECTRICAL WITHSTANDING VOLTAGE:500 VAC/MINUTE
6.MATING CYCLES:10,000 INSERTIONS
ENVIRINMENT
1.OPERATING TEMPERATURE RANGE:-40°C TO +85°C
PACKING STYLE
1.TAPE REEL
