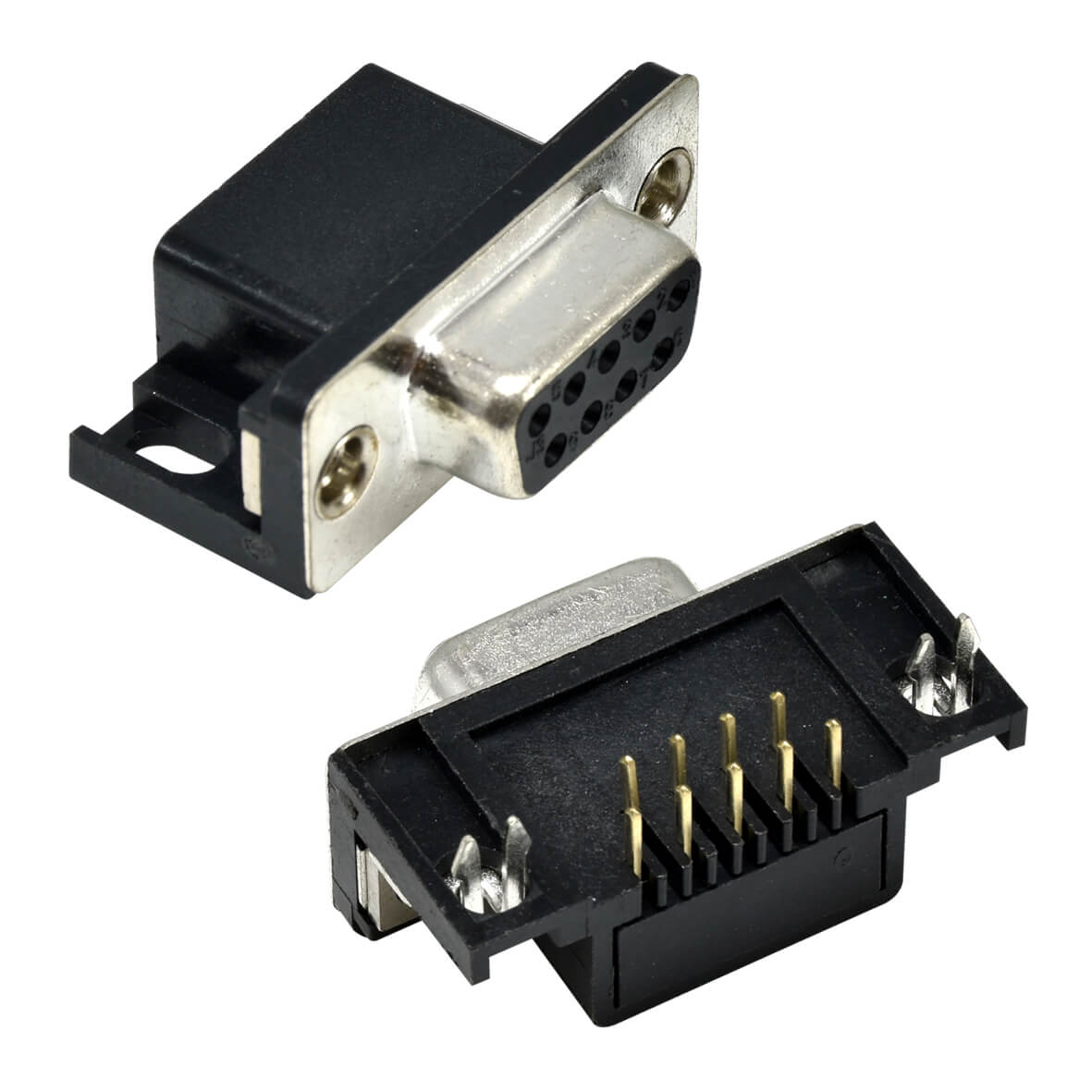

5023303XXXX

Home
/
Products
/
5023303XXXX

5023303XXXX

Specification

MATERIAL AND FINISH

1.INSULATOR:PBT THERMOPLASTIC,30% GLASS FILLED UL 94V-0 RATED,BLACK COLOR 2.CONTACT:BRASS UNDERPLATE:50u"NI CONTACT AREA:1u"~30u"AU SOLDER TAILS AREA:100u"SN 3.SHELL:STEEL,SN OR NI FINISH 4.GROUNDING BRACKET:BRASS,SN FINISHED

ELECTRICAL CHARACTERISTIC

1.CONTACT CURRENT RATING:5.0A 2.CONTACT RESISTANCE:30mΩ MAX 3.INSULATION RESISTANCE:5000 MΩ MIN 4.DIELECTRIC WITHSTANDING VOLTGE:1000V AC MIN

ENVIRONMENT

1.OPERATING TEMPERATURE RANGE:-55°C TO +105°C
