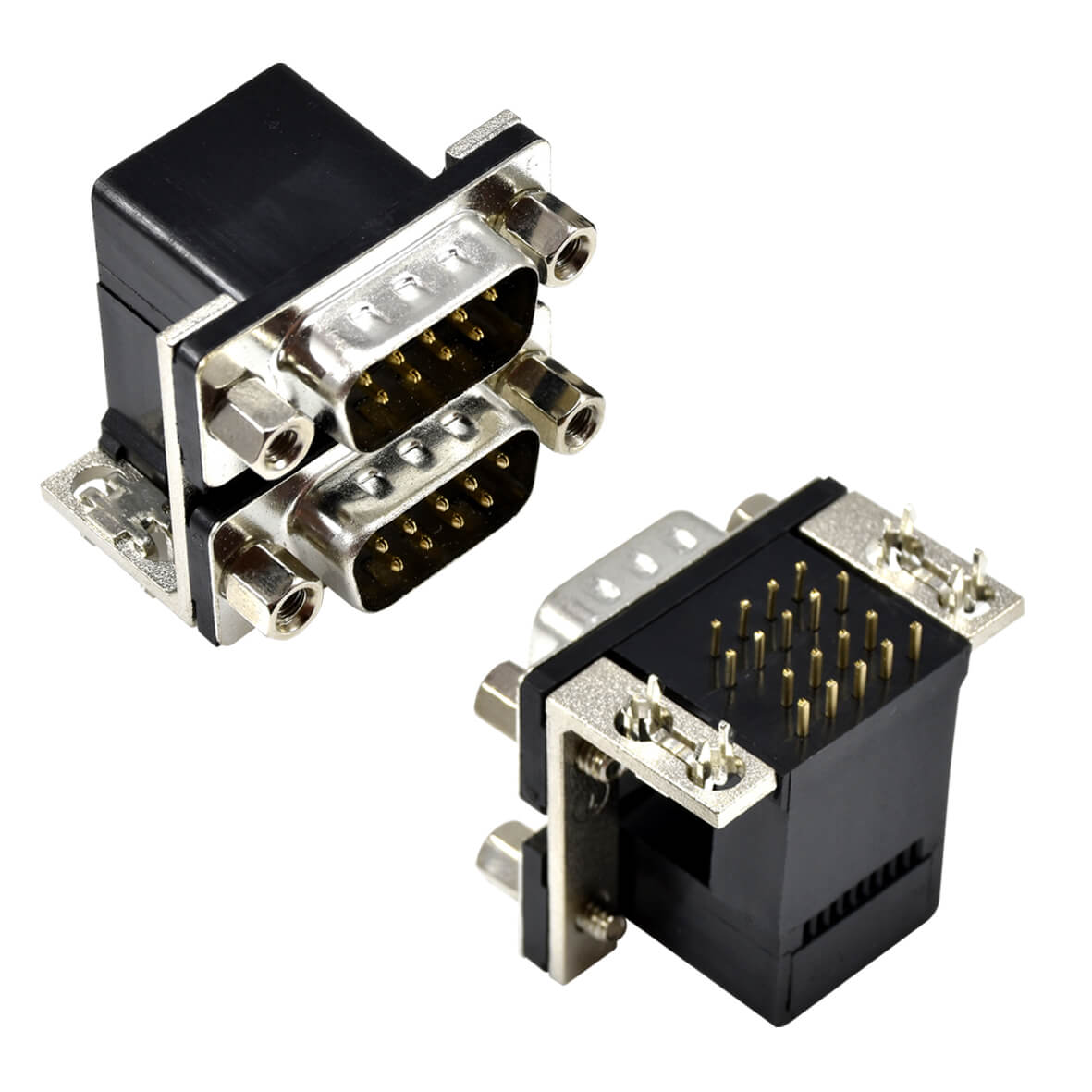

50214010010
50214010010
Specification
MATERIAL AND FINISH
1.INSULATOR:THERMAIL PLASTIC UL94V-0,BLACK
2.CONTACTS:COPPER ALLOY
PLATING:UNDERPLATE:50~100u"NI
CONTACT AREA:1~30U"AU
SOLDER TAILS AREA:100~200u"SN
3.SHELL:STELL
4.RIVET,BOARDLOCK:COPPER ALLOY
ELECTRICAL CHARACTERISTIC
1.CURRENT RATING:3 A MAX
2.OPERATION VOLTAGE:250 VAC Max
3.CONTACT RESISTANCE:25 mΩ MAX
4.INSULATION RESISTANCE:3000 MΩ MIN.@500 V DC
5.DIELECTRIC WITHSSTANDING VOLTAGE:1000 VAC/MINUTE
ENVIRONMENT
1.OPERATING TEMPERATURE RANGE:-55°C TO+105°C
